Cryloc rotary screens


General It's hard to imagine the grain and bulk processing industry without the use of the Cryloc rotary screens. in the cylindrical housing one or two specially formed screens separate the fine particles from the incoming product. Maximum 10% fines at the inlet results in less than 1% in the finished product (fines are smaller than 2/3 of the pellet diameter). The wide capacity range makes the Cryloc rotary screen an essential sifter for the dry cereal processing industry.

Product features

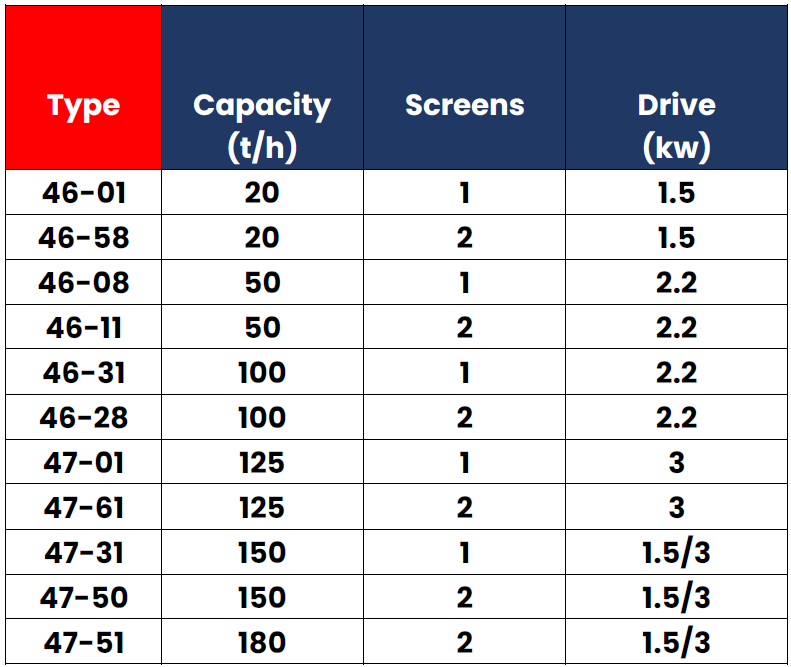

  • Compact design Vibration free operation Capacities from 20 to 180 t/h Single screen deck Double screen deck for different product sizes Single drive Double drive for high capacities (contra rotation) Certified for ATEX zone 21/22

Suitable for:

  • Raw materials prior to grinding
  • Pellets and crumbs
  • Extrudates and expandates

Maximum pellet diameter is 12 mm.

Special execution

  • Central metal by-pass
  • Lump separator
  • Frequency converter/variable speed
  • Pulse jet cleaning
