Progress pellet mill


khazar elctrict solution’s pellet mill, a highly stable, robust and sophisticated pellet mill. More than 40 years of experience in development, engineering and production ensures quality and continuity. The partially patented innovations offer a unique price/performance ratio. A technological concept ensures an even distribution of the enormous mechanical forces on the heavy bearings of the solid main shaft and intermediate shafts. Te stepped transmission via V-belts and timing belts permits the application of higher motor powers. Combined with the refined transmission, the robust frame guarantees a stable and vibration-free pellet mill during production.

Product features

  • very stable, vibration
  • free and near
  • silent pellet mill.
  • Large die surface area and roller diameter.
  • Large motor powers.
  • Variable die speed.
  • Suitable as two
  • or three
  • roller pellet mill. Longer lifetime of dieand rollers.
  • Conical die fitting.
  • Central greasing system
  • Longer lifetime of main shaft bearings. Integrated pneumatic quick
  • dump chute.
  • Integrated hoist facility.
  • Minimal maintenance cost.
  • Easy to clean.
  • Simple design.
  • Central electrical connection box.

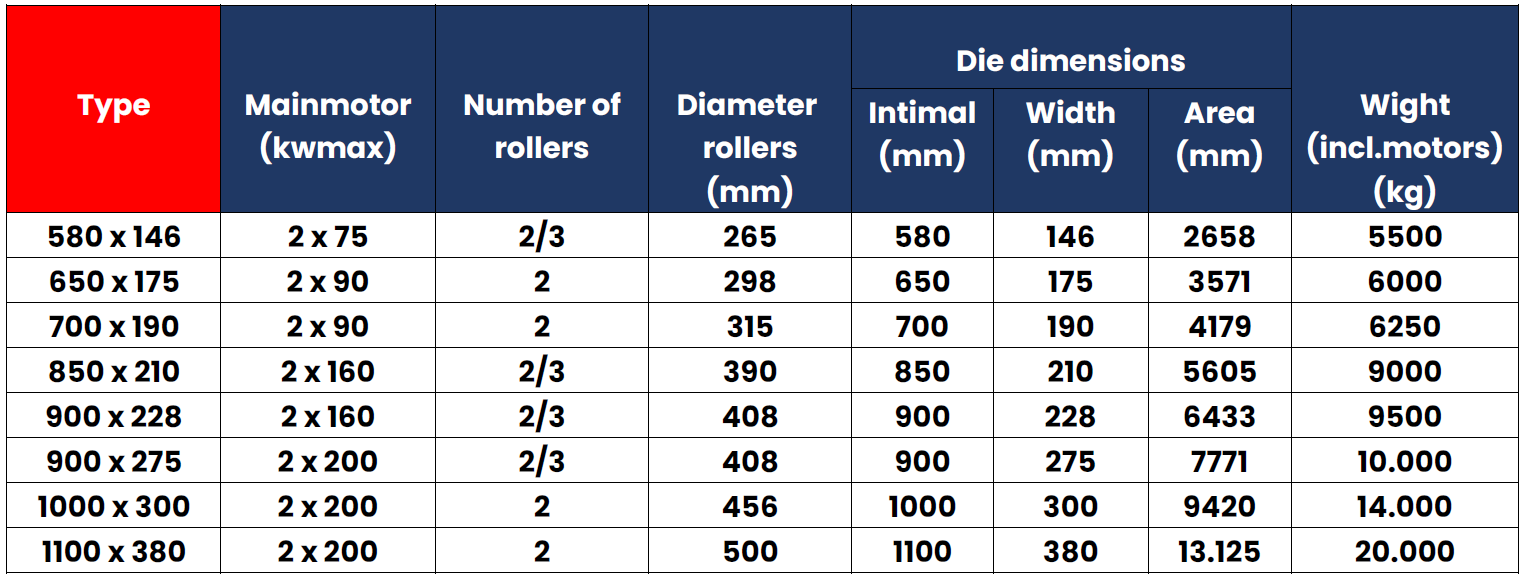

Specification

Robust construction with integrated base plate.

Double-walled door, dust plate and quick-dump chute in stainless steel.

Solid main shaft with heavy duty spherical roller bearings.

Conical die holder and cast-iron pulley.

Two-stage transmission via V-belts to intermediate shafts and HTD timing belts to main shaft.

Die speed variable from 4.5 to maximum 8.0 m/s.

Speed sensor.

Available with two or three rollers.

Eccentric roller shafts.

Manual or remote roller adjustment.

Cutting knife, fixed on press frame.

Central greasing system with infrared sensor.

Shearpin protection at the rear.

Door and side covers with safety switch.

Hoisting facility for replacing die and rollers.
